TPS-S8900 AUTOMATIC CHANNEL LETTER BENDING MACHINE xsfld@vip.163.com

TPS-S8900 AUTOMATIC CHANNEL LETTER BENDING MACHINE

TPS-S8900 automatic channel letter bending machine is conducted a comprehensive upgrade based on our TPS-S8700 precision automatic letter bending machine. It is substantial improvement in the bending strength and processing height; This new machine has larger torque and high precision and higher bending similarity. Its max. processing height gets 180mm and max. stainless steel bending thickness is 1.0mm. It is the high-end bending equipment for the first selection especially suitable for the high letters (usually found in square and plaza), LED letters, stainless steel letters, punching letters, resin letters, giant glowing letters, etc.

Structure Characters:

1. Reel type feeding:

The front roller flattening mechanism, it can flatten materials effectively in advance, to avoid jam due to uneven materials.

2. Alternating clamping feeding mechanism

Slide rail type pressure device and the plate guide chute, to avoid the phenomenon of arch material and ensure smooth feeding process. Alternating clamping feeding mechanism includes servo motor controlling and double screw nut driver, with large torque, which has high precision and high speed transmission performance to ensure actual feeding accuracy to ±0.1mm and to eliminate physical skid phenomenon due to the roller pressure feeding.

3. Closed loop control system

All TPS bending machines have the material tracking system, which can real-timely monitor any material stretching and slipping during bending. With this closed-loop control of material length, precise matching bended letter with panel face letter can be guaranteed.

4. V-shaped slotting mode

In the process of metal letter surrounding edge processing, slot mechanism is very important. Its work frequency is very high, the load is large. In order to meet the bulk processing, the mechanism should be strong and mechanical should be durable, our machine uses vertical plane v-shaped slot. Mature technology, stable performance and reliable, suitable for stainless steel, galvanized sheet, aluminum and other metal materials for V slotting.

a. Intelligent control slot depth, free setting total slot depth, single slot depth and slot numbers.

b. Servo motor control, high precision nut driver, with the advantages of slot speed, high accuracy and constant torque.

c. V slotting surface is smooth, without any burr. Depth is consistent. The R Angle is not obvious when angle bending. Ensuring letters with clear and beautiful outline.

d. Uses high strength, dovetail shape blade guide rail mechanism, its impact resistant ability compared with the straight line guide rail mechanism ascending more than 10 times.

e. The blade material is imported high speed steel. High hardness, high temperature resistant, don't need to make real-time cooling tool during the operation. The blade is with cutting points at both ends. And it can be repeated grinding to make higher efficiency and lower cost.

f. Slotting with low noise, no Mars, no soot. And the machine is with metal mess catcher cup. Suitable for dust-free workshop.

g. Plating surface after slotting is colorless. It can meet the characteristics of no fine polishing when slotting mirrored, rose mirrored, plating titanium surface and other non-ferrous materials, to ensure the fine finished products.

5. Telescoping double bending bars mechanism

The core of the bending machine is arc shape effect. TPS-S8900 automatic channel letter bending machine uses servo control, high rigid gear transmission, telescoping double bending bars, bending mold quick change system; with large bending torque, small interference area, no scratch surface, material thickness is adaptable, suitable for high precision, high strength of industrial signs processing.

Pictures of the equipment details:

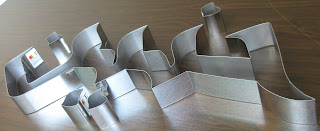

Letter samples bended by the bending machine TPS-S8900

TECHNICAL SPECIFICATIONS:

Item	Parameters
l Power Supply	l AC200V
l Power	l 2.5KW
l Compressed Air	l 0.4 - 0.8Mpa
l Axis numbers	l 4pcs
l Min. Curving radius	l R7mm
l Min. Distance between interal and external angles	l 4.5mm
l Start to Bend Distance	l 3mm
l Applied Materials	l Stainless steel , galvanizer and aluminium flat surface plate and reel materials
l Material Thickness	l Stainless steel 0.6 - 1.2mm
l Processing Height	l 20 - 180mm
l Material Feeding Method	Alternating double screw rails feeding
l Servo Motor Quantities	l 3Pcs
l Step Motor Quantities	l 1Pc
l Machine N.W. :	l 600Kgs

2012年8月1日星期三

About TaiPuSheng Technology Co., Ltd

TaiPuSheng Technology Co., Ltd (HangZhou City, China) provides equipment (Channel Letter Bending Machine) and supplies to sign makers producing various types of channel letters.

Our flagship products are a new series of machinery for the automation of the production of all types of sign letters. These channel letter benders process traditional aluminum channel letters, stainless steel channel letters as well as letters formed from our new aluminum extrusions material (which makes trimless/notchless channel letters), galvanized steel, brass, bronze, and stainless steel.

E-mail: TPSTech@163.com

Common features of all TPS Channel Bender products

Convenient software. The TPSControl Center (Super Auto Bend System) is a software package that provides a user-friendly environment. It provides various features, which are very simple to use and comes with an easy learning function for each model. For example, it offers calibration functions such as automatically adjusting the length, flange creation, and V-cut for folding an arc or angle. The TPSControlCenter program’s performance and safety is well recognized by customers throughout the world. It offers a very intuitive interface and various convenient functions, as well as a strong letter setting function.

Excellent durability and safety. We are proud of the product’s reliability and long life cycle demonstrated over 7 years of manufacturing channel letter bending automation equipment. TPS performs a strict test on each phase suitable for the unique environment for signboard manufacturing. We guarantee that our product can operate accurately with suitable durability in cold or hot climates. We are committed to periodic self-inspections and tests, and we perform various tests on each product before releasing it to the market. We already have obtained the CE certificate.

Advanced technology. TPS’s channel bender system has accurate and excellent bending and slotting technology. This is made possible through many years of experience in developing channel letter equipment systems and our enormous investment in research and development. Our products offer unique functions - unseen in other competing products - and are the result of key patented technologies. TPS Tech is devoted to developing technology that is needed to serve our customers. With our bending systems, customers can increase productivity and substantially reduce costs, including labor cost. Furthermore, we are upgrading our systems continuously to meet new demands that are emerging in the market. Customers can, therefore, select any TPS channel bender system without hesitation as we are committed to fulfilling market needs, current and future.
